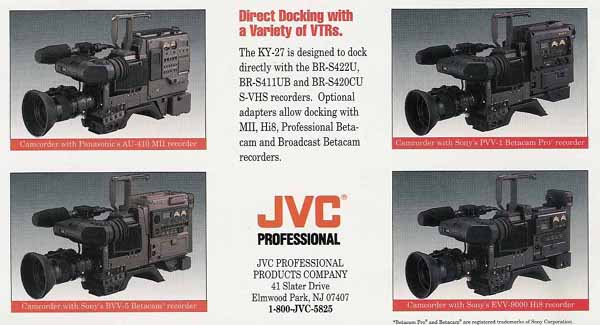

JVC KY-27B Docking Features |
 |
|
|
JVC KY-27B Other Features |
|
LoLux Technology |
The KY-27 has excellent sensitivity of F8
at 2000 Lux, and the incredible new LoLux mode requires a mere 1.5 Lux to
produce acceptable pictures with full, 100% video level. In applications as low as 1.5 Lux, users
can capture images never before possible. Once LoLux is switched on,
the CCD's are maximized for low-light sensitivity equivalent to an
electronic gain of 24dB with an additional 6dB, which is provided by JVC's
unique CCD pixel readout system, for a total of 30dB. All without
the noise and picture degradation normally associated with this degree of
gain. |
|
|
|
Latest CCD Technology |
JVC's latest 2/3" CCD technology incorporates an array
of advanced features that set new standards for performance and
sophistication. Sensitivity is dramatically improved by the new
dome-type micro-lens, which utilizes JVC's light tracking simulation
technology for highly efficient light conversion. The result is the
nearly total elimination of vertical smear, flare and ghost images. |
|
750 Lines of Horizontal Resolution |
The KY-27 delivers 750 Lines of horizontal resolution for
crisp, high-fidelity pictures of outstanding quality. |
|
62 db S/N Ratio |
JVC's superior video processing circuitry achieves an S/N
reatio of 62 db at 0 (zero) gain, eliminating image-degradation noise
under a wide range of operating modes. |
|
Lightweight Ergonomic Design |
The KY-27 has been designed to offer near-perfect weight
balance, with all its controls ideally located for total ease of
operation. And the extensive use of solid-state circuitry provides
excellent reliability and durability |
|
Variable Scan |
The KY-27's Variable Scan function provides flicker-free
shooting of CRTs, and features an electronic shutter with fine increments
ranging from 1/60 second to 1/2000 second. |
|
Full Auto Shooting |
In the Full Auto Shooting mode, the KY-27 operator has only
to zoom, focus and press the trigger. All other functions are
controlled automatically for total "point and shoot" ease of
operation. This is a real plus when you have to quickly capture a
shot and you don't have time to check your switch settings. |
|
Enhanced Automatic Level Control (ALC) |
The new Enhanced ALC mode not only varies the gain, but
also engages a variable shutter, allowing continuos automatic shooting in
all light levels, from very dark to bright outdoors, without the need to
suddenly switch the gain setting or insert an ND filter. |
|
Full Time Auto White |
This function analyzes the color temperature of the light
source and then self-adjusts the setting. This allows you to follow
a subject moving through different light sources, such as incandescent to
fluorescent to outdoors, without stopping to take a new white
balance for each lighting change. A host of other features demanded
by today's video professionals rounds out the KY-27's total performance
capabilities.
- Star Filter
- Advanced Memory System (AMS)
- Low Power Consumption
- Remote CCU Options
- Auto Knee Circuitry
- SMPTE-Type Color Bars
- Component, Composite, Y/C, and RGB Outputs
- 2H Contour (detail) Correction
- User Selectable 8-pin or 12-pin 2/3" Lens
Trigger
- 4 White Balance Settings
- No Misregistration from Terrestrial Magnetism
- No Lag, Burn or Deflection Distortion
- Color Matrix Circuit for Accurate Color
Reproduction
- Genlock Circuit Built into Camera Head
|
